Welcome!

Welcome to my schematic generator! its currently in Beta so please do not expect it to be flawless - i am still working on it :)

To report any issues (or suggestions) please email [email protected]

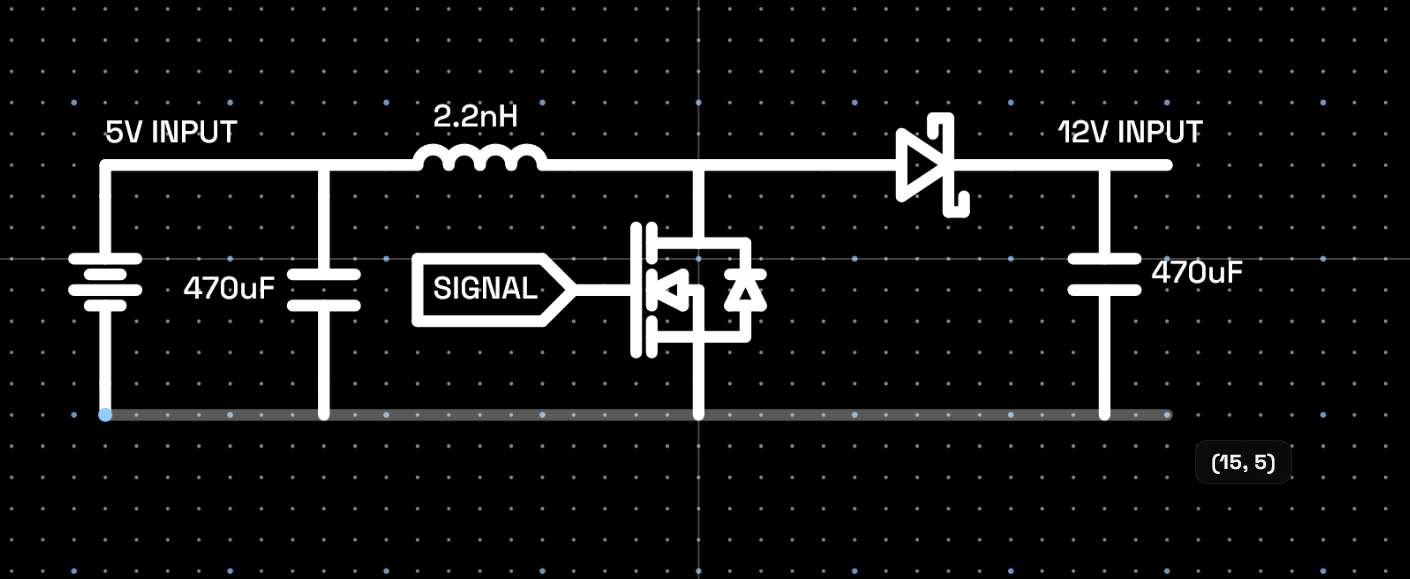

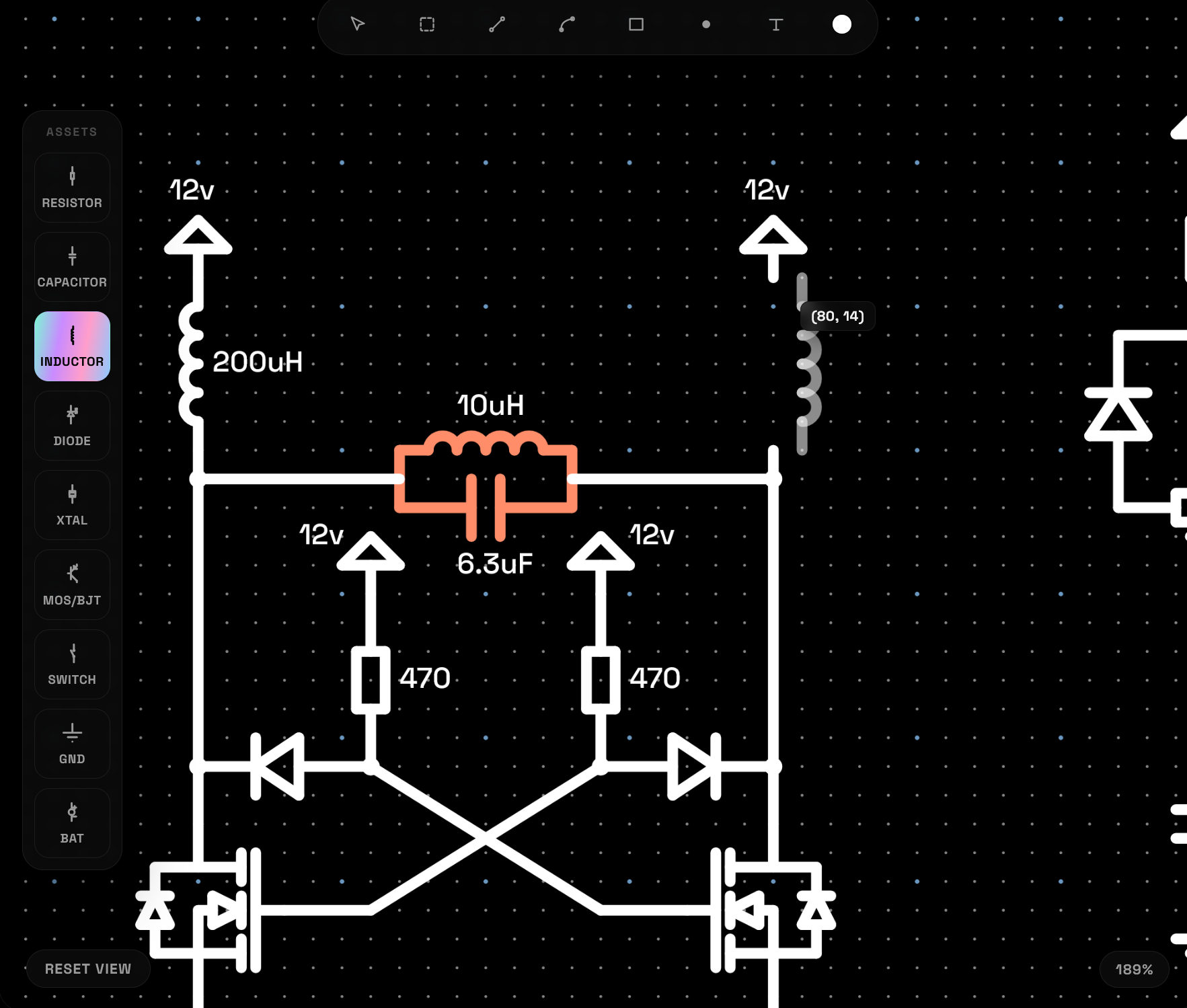

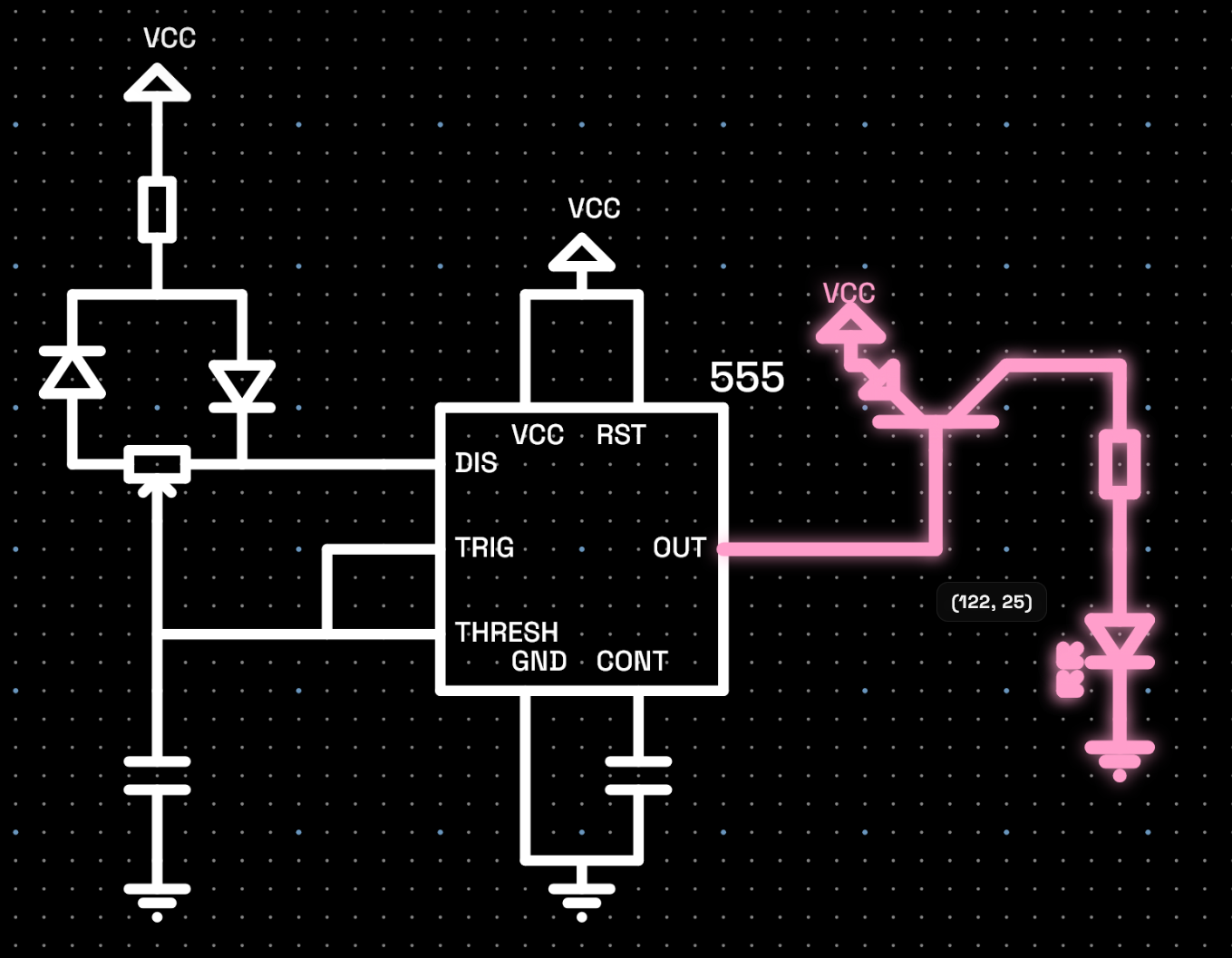

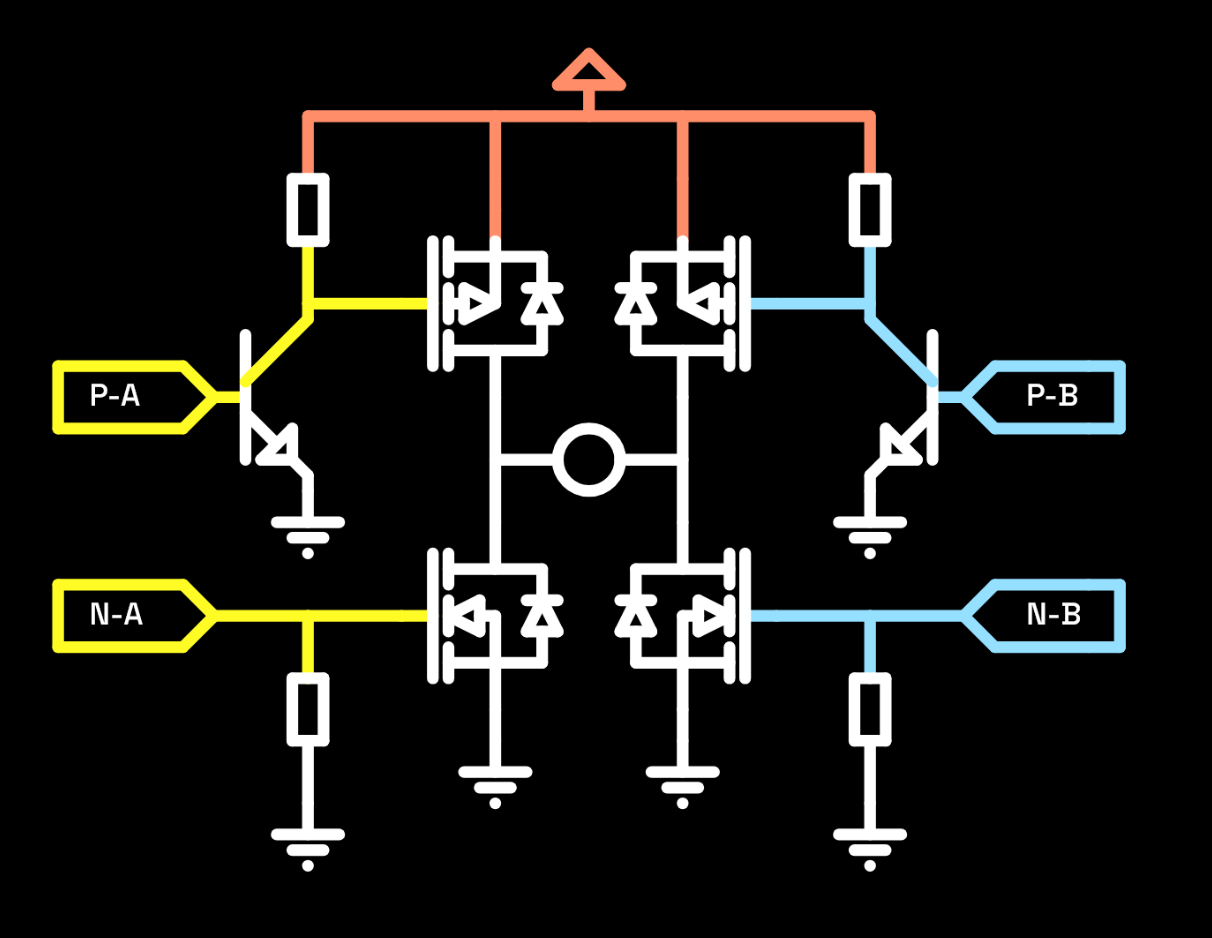

Schematic generator screenshot 1 Schematic generator screenshot 2 Schematic generator screenshot 3 Schematic generator screenshot 4
Expanded screenshot

Schematic Data



General
Left-click drag / Middle-click dragMove around
Scroll wheelZoom in/out
Right-clickCancel draft / exit tool
MSelect mouse tool
WSelect wire tool
ASelect arc tool
BSelect rectangle tool
PSelect polygon tool
NSelect node tool
TSelect text tool
SSelect rectangle-select tool
Arrow keysNudge selection
Space / RRotate selection 90°
XFlip selection left/right
YFlip selection up/down
Delete / BackspaceDelete selection
CCopy selection
VPaste at copied location +1,-1
Alt (hold)Temporarily disable snap
EscapeCancel draft / clear selection / return to mouse tool
Line width 3

Beta

#
Font Size
Assets

Can't find your symbol? Try clicking on a similar component as there are sub-menus for a lot of these. E.g a P-channel mosfet and an NPN transistor are in the "NMOS" menu.

Does the symbol not exist? Try making your own from the assets and the line/arc tool. E.g a transformer symbol can be made by placing 2 inductors back-to-back with 2 lines between them. Or a fuse can just be made by running a line through a resistor.

When using an asset, it can easily be modified as they are all made with grid-aligned lines/arc/nodes.

100%
