About Me

Commissions

Electronics Design

I will design a project for you involving electronic/electrical design. Primarily PCBs or circuit schematics.

Estimated Cost

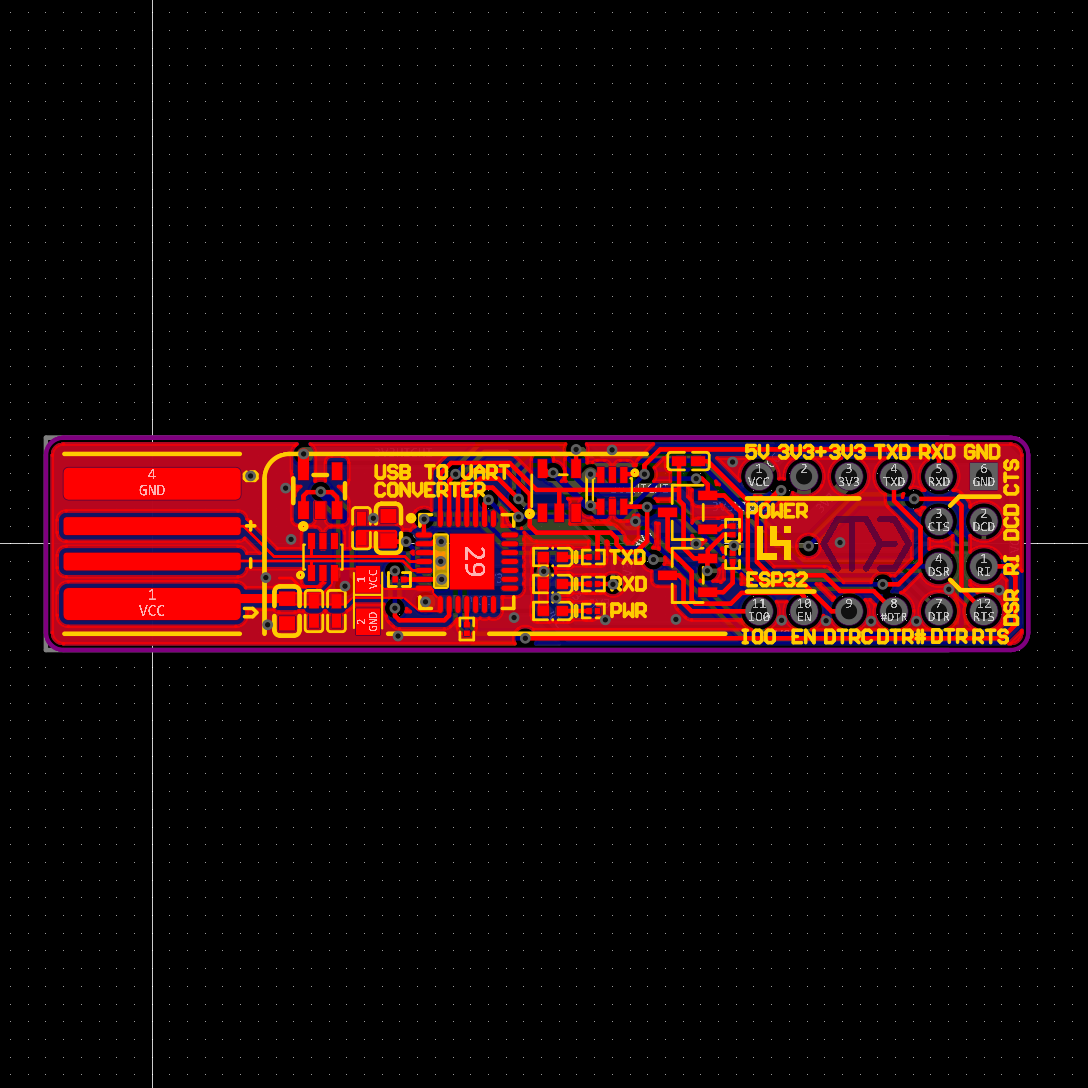

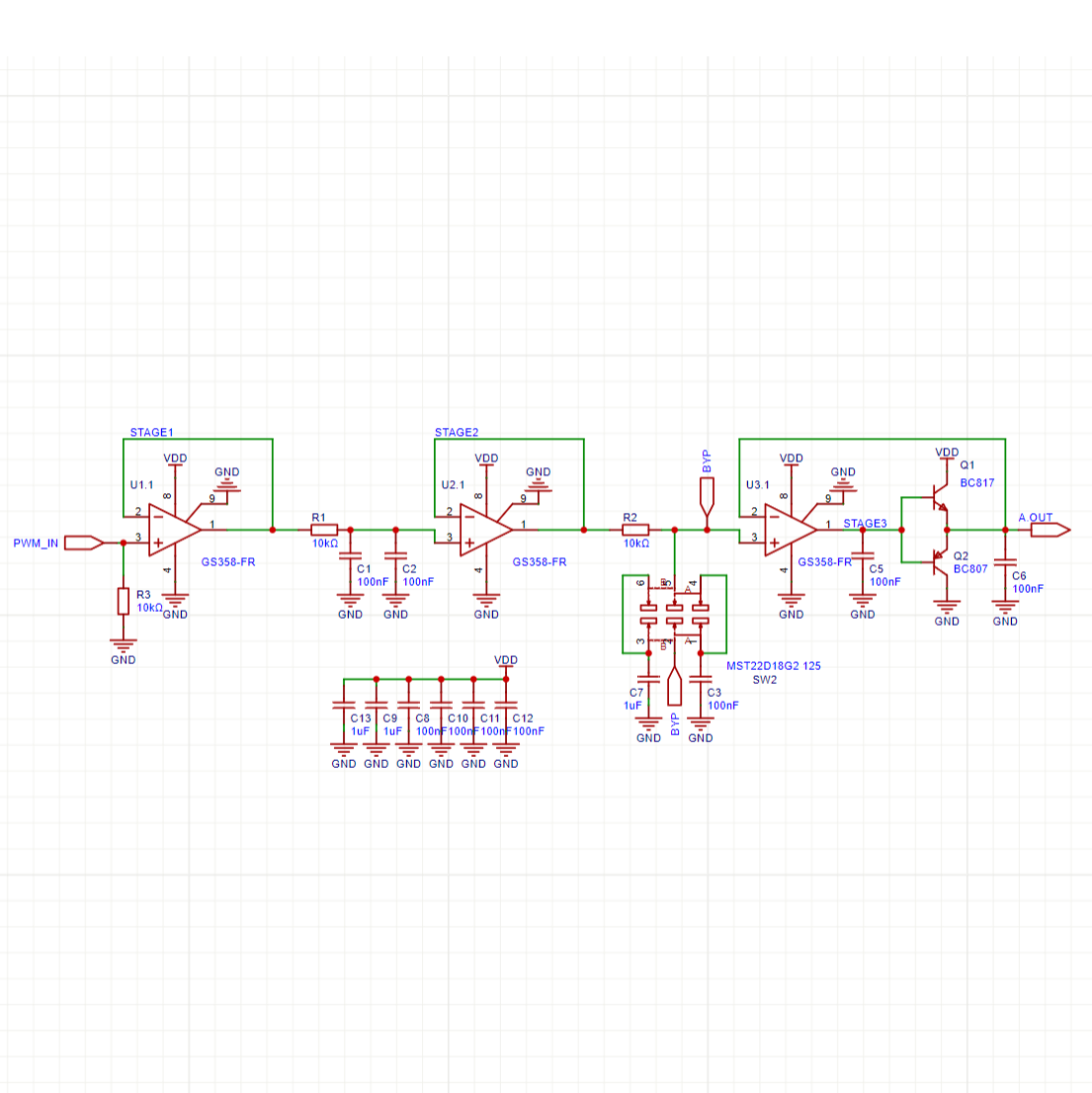

Basic Schematic + PCBe.g. USB to UART converter stick Basic Schematic + PCB example - USB to UART converter stick Basic Schematic + PCB example - PWM filter $75

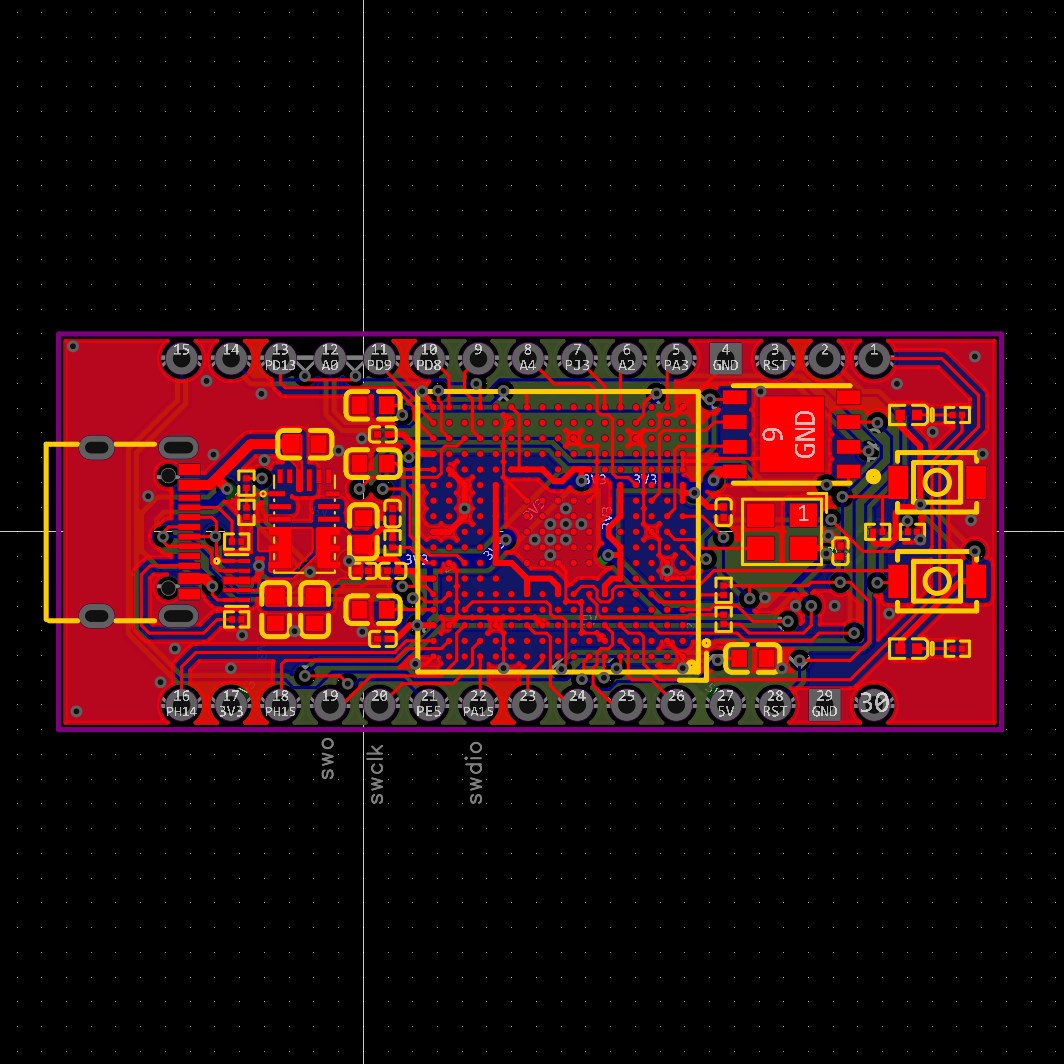

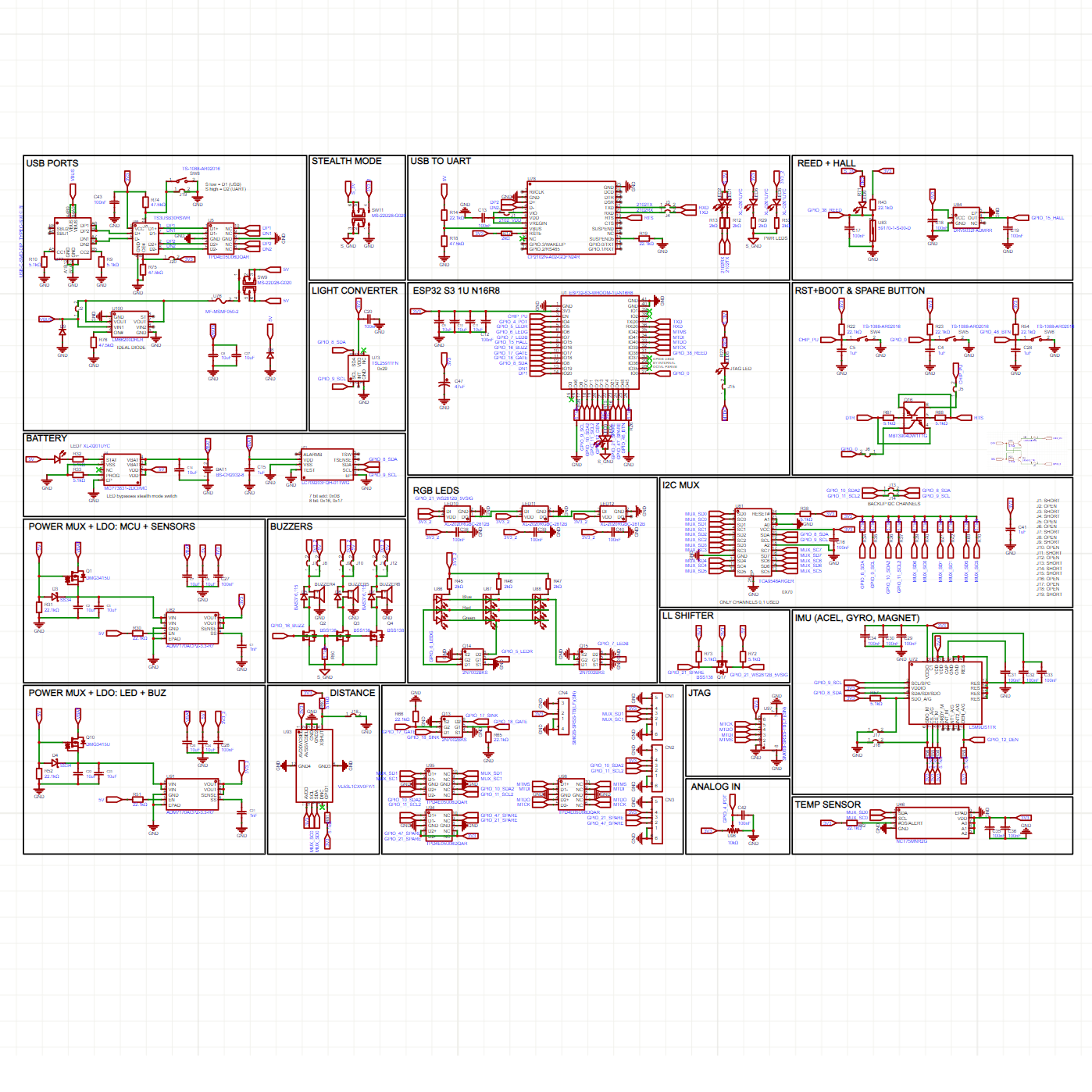

Advanced Schematic + PCBe.g. 3D printer control board Advanced Schematic + PCB example - BGA PCB Advanced Schematic + PCB example - ESP sense schematic $250+

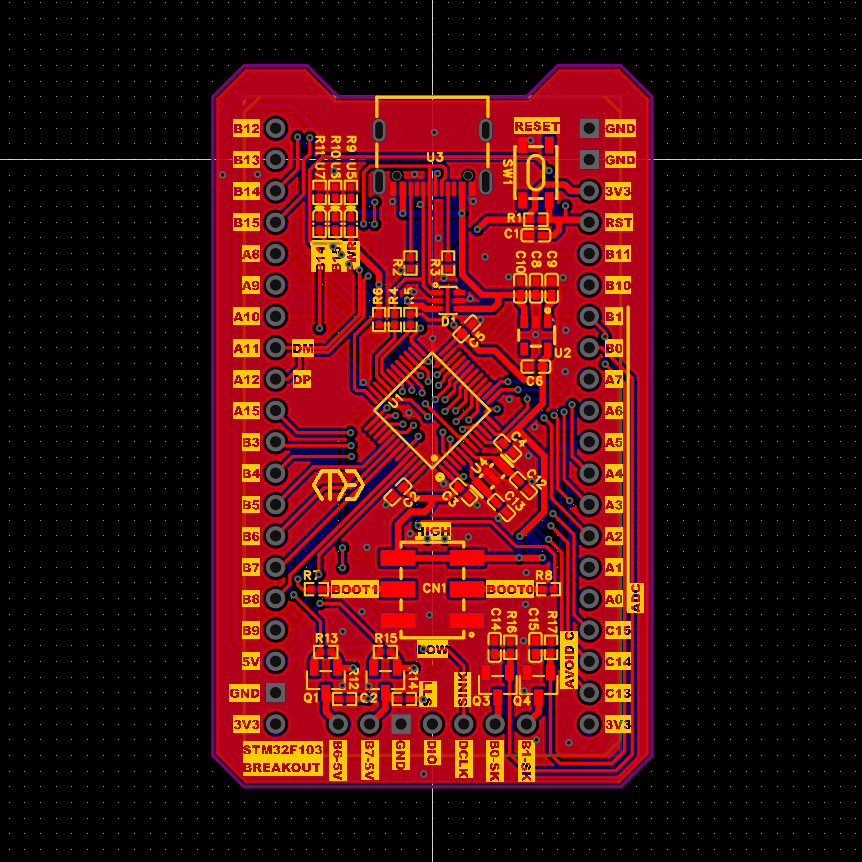

Basic PCBe.g. USB to UART converter stick. Provide your own schematic. Basic PCB example - STM32 board $50

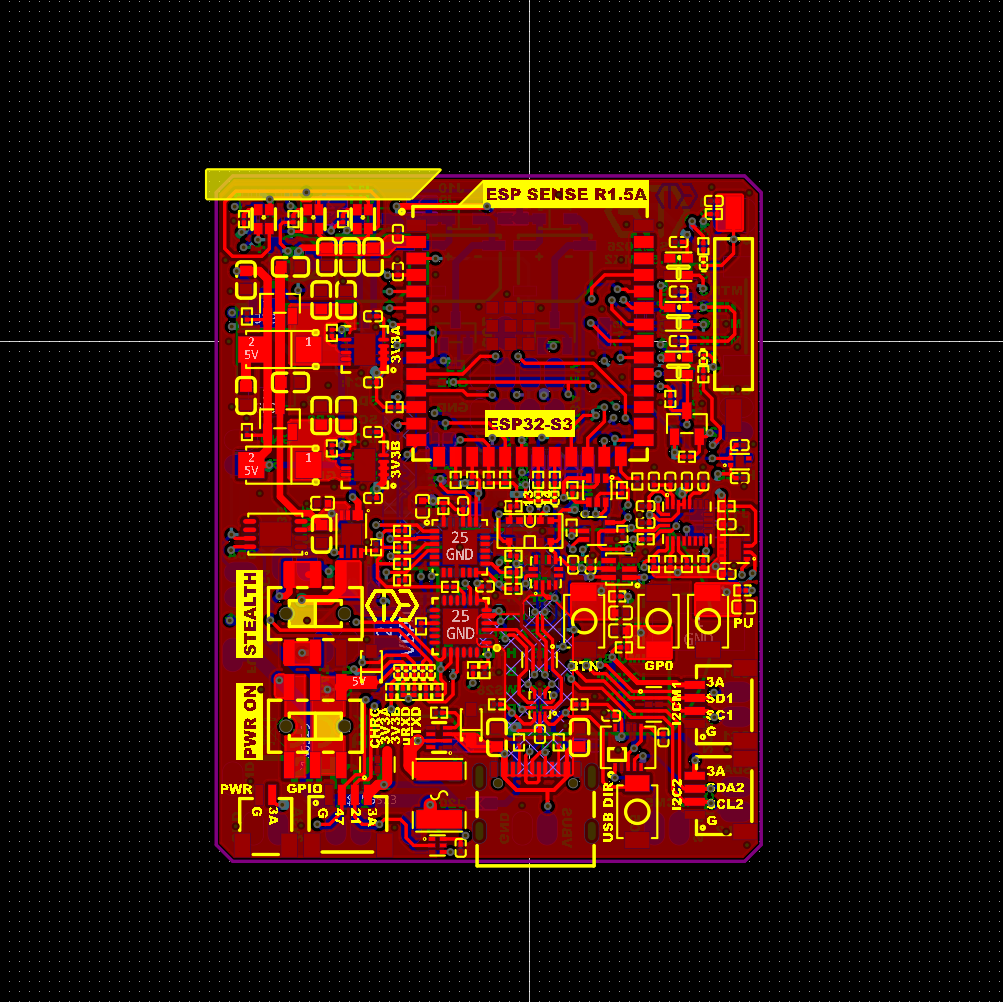

Advanced PCBe.g. 3D printer control board. Provide your own schematic. Advanced PCB example - ESP sense board $200+

3D Design

I will design a project for you involving mechanical design. I specialise in FDM 3D printing.

Estimated Cost

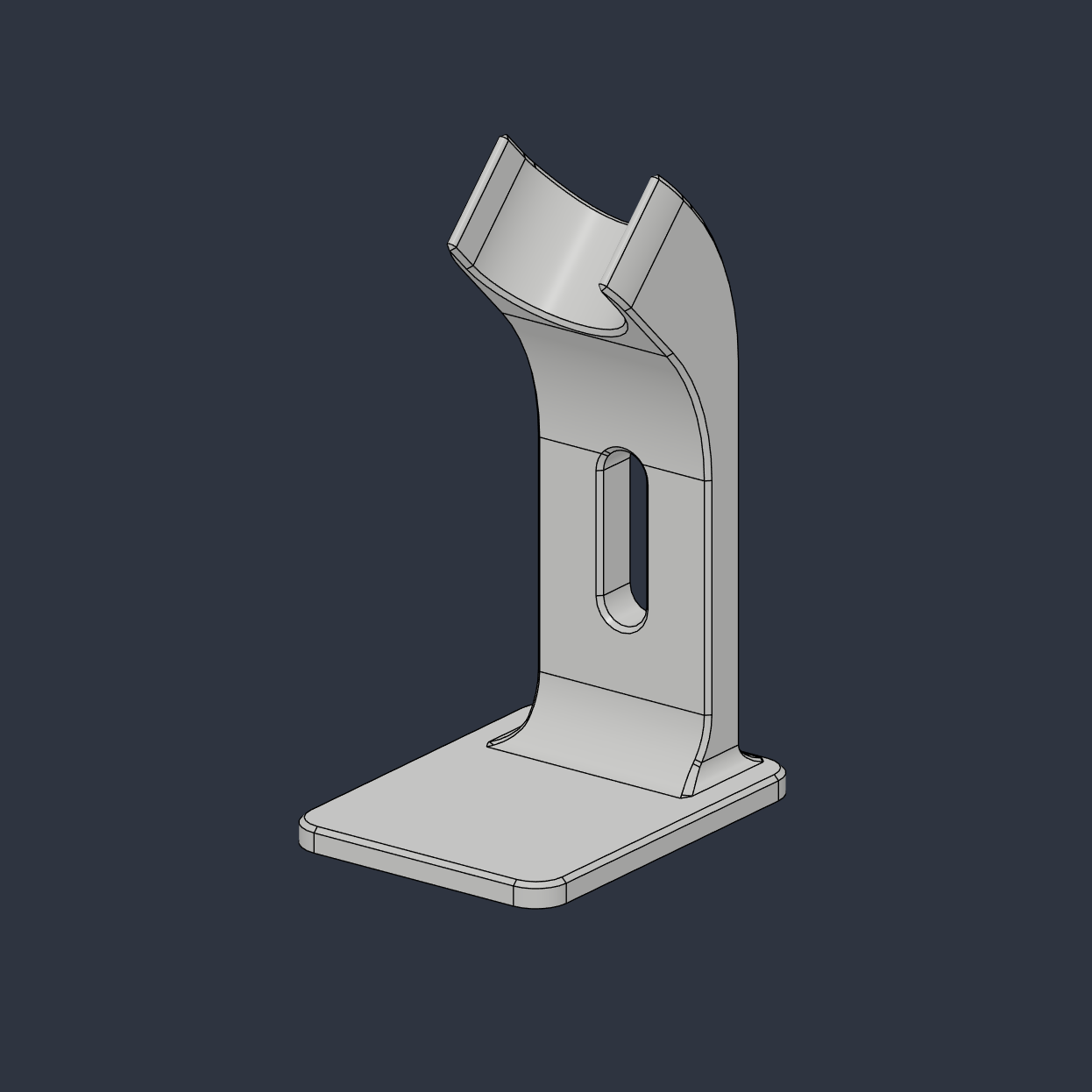

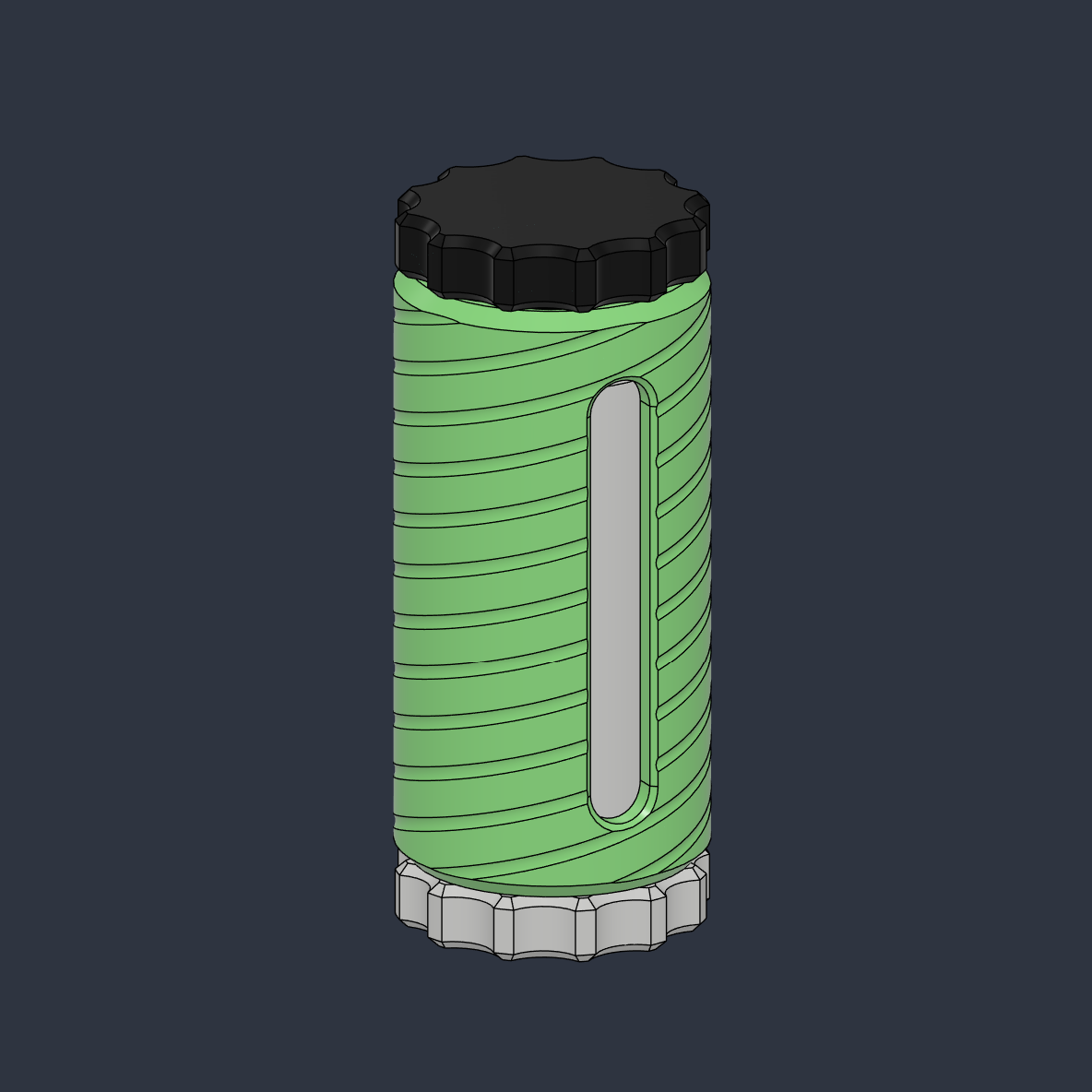

Basic Designsuch as a wall hook, desk organiser, clip Basic Design example - stand Basic Design example - screw $30

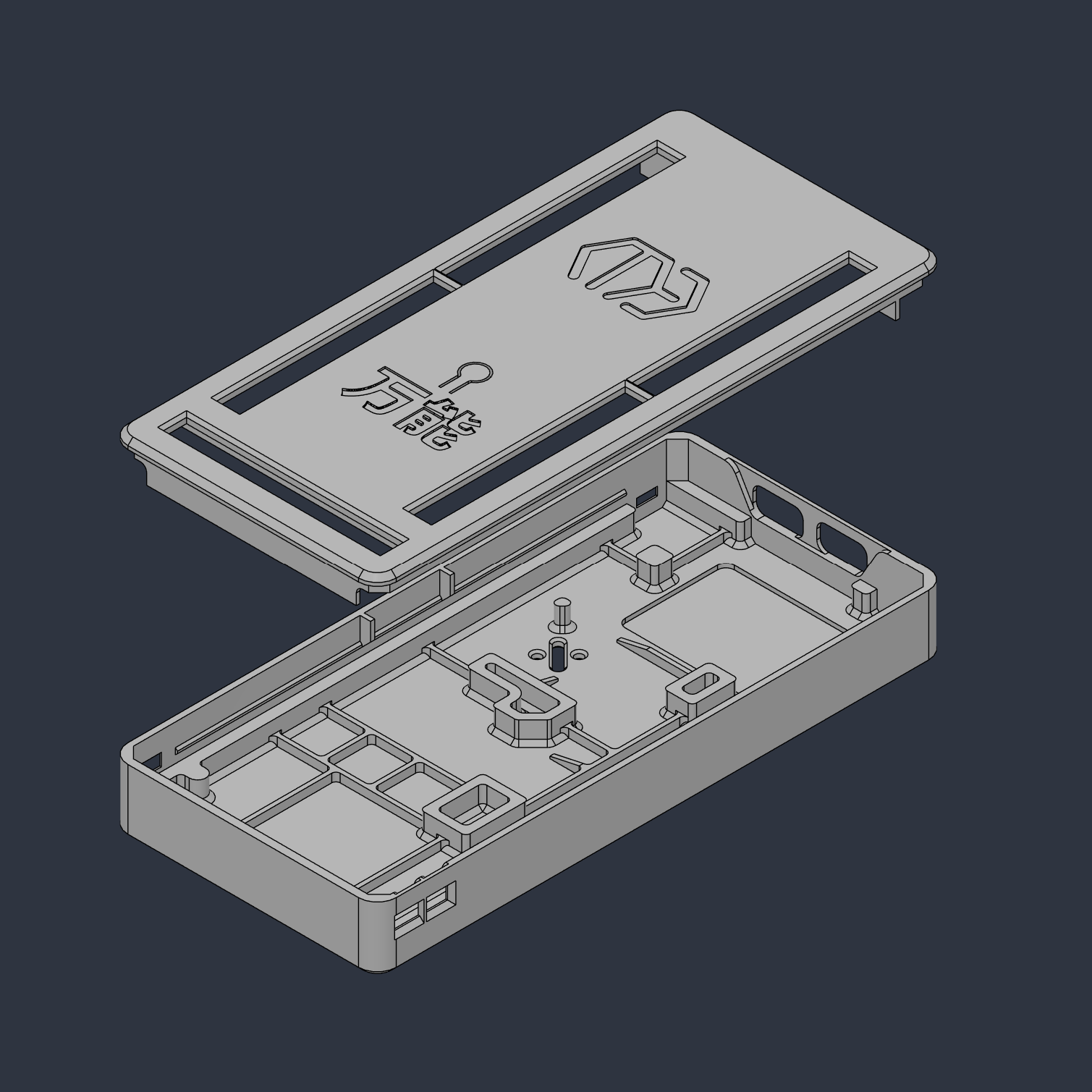

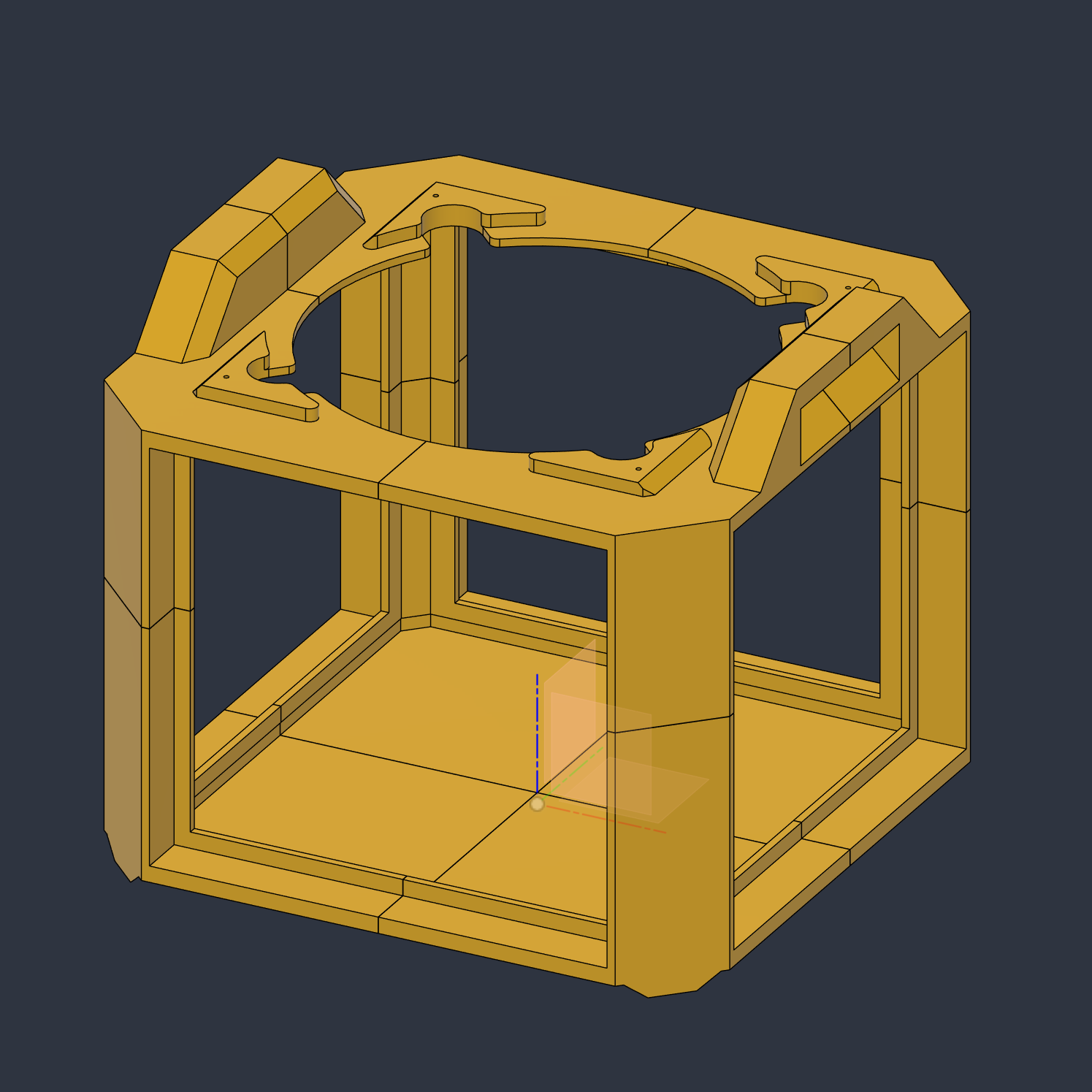

Moderate Designsuch as an electronics enclosure, fixture Moderate Design example - electronics enclosure Moderate Design example - fan case $80

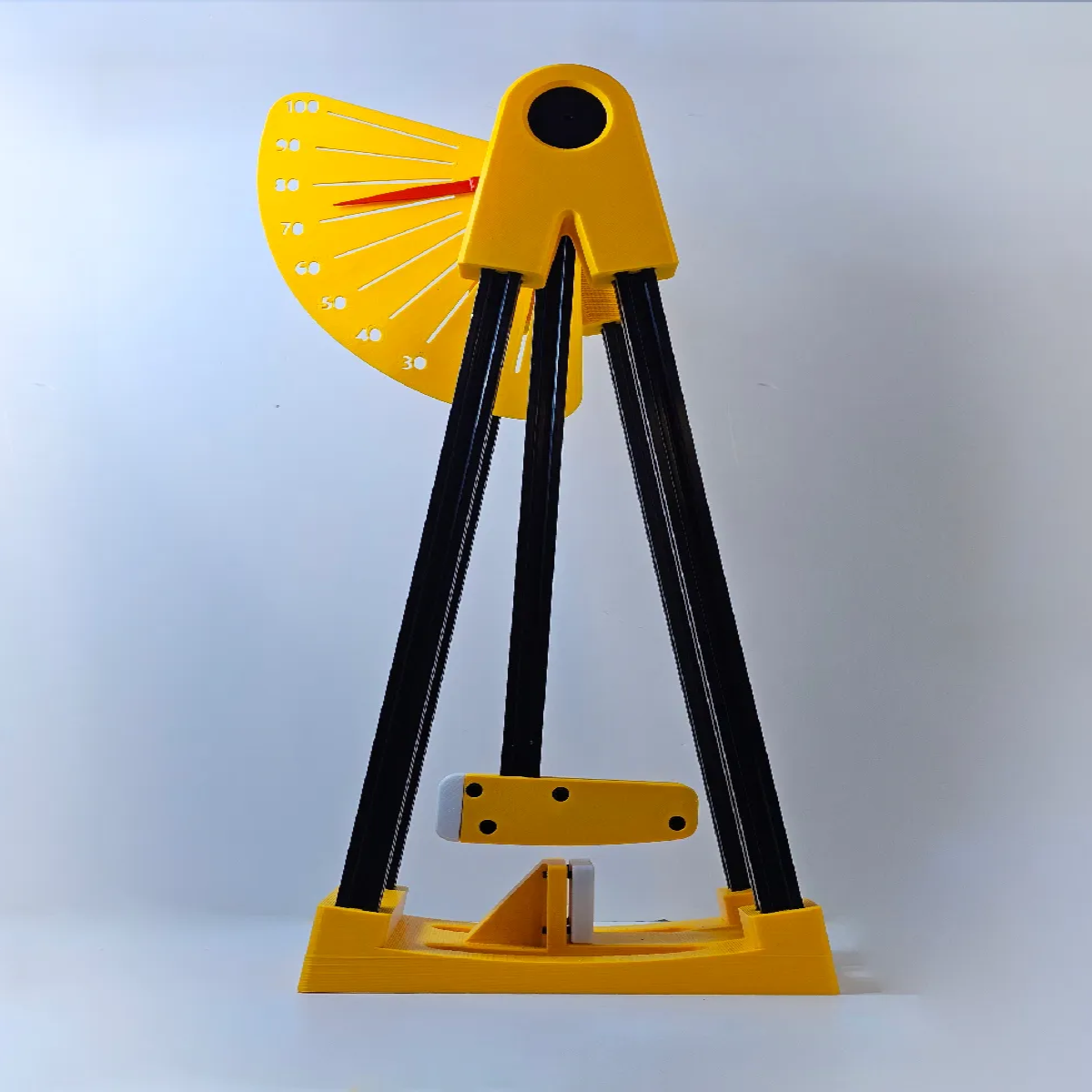

Complex Designsuch as a cycloidal drive actuator, or izod impact tester Complex Design example - izod impact tester $250+

Mechatronic Design

I will design a project for you involving mechanical design and hardware, as well as electronics.

Estimated Cost
Basic Designsuch as a mini LED matrix with diffuser $50

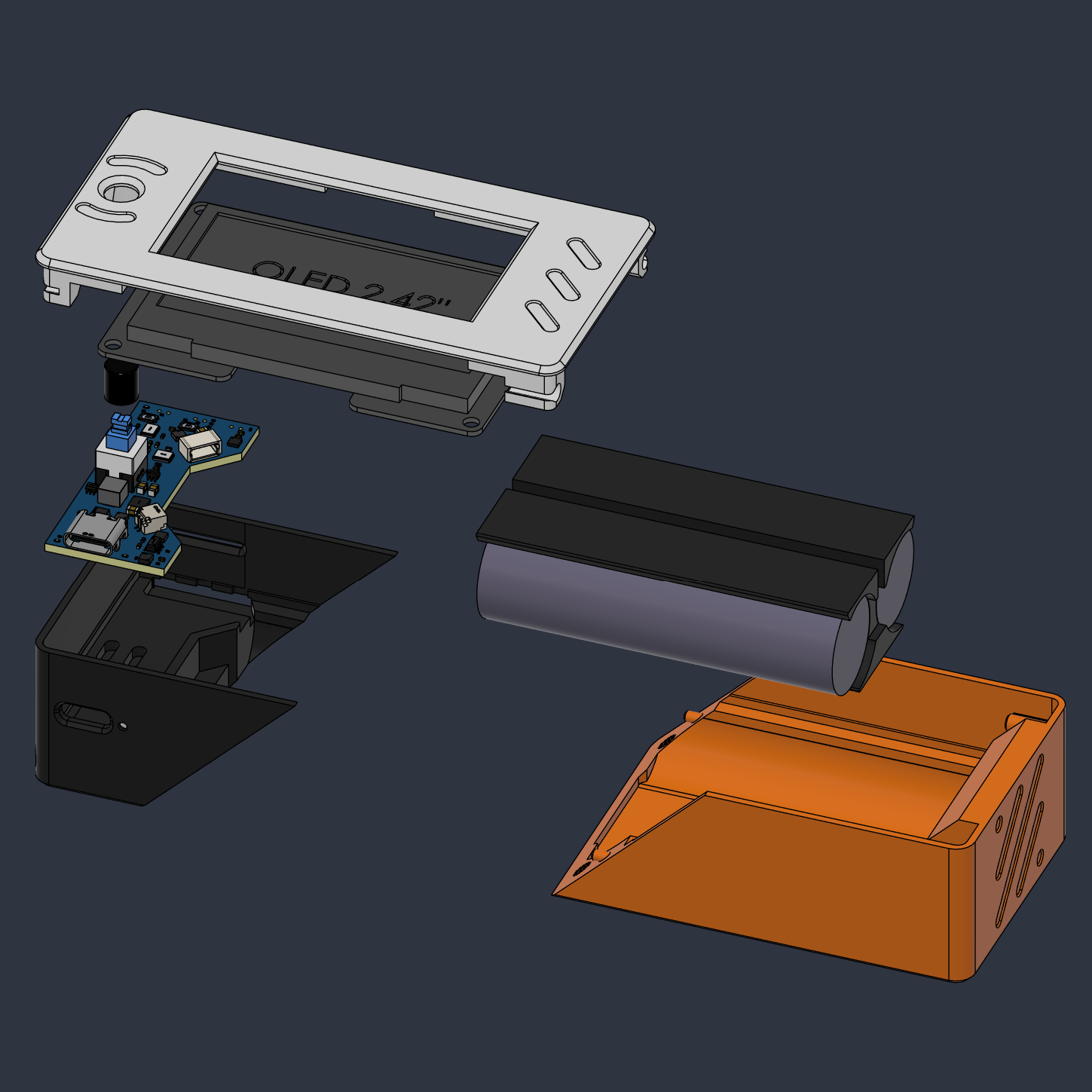

Moderate Designsuch as a camera slider Moderate Design example - thermologger $150

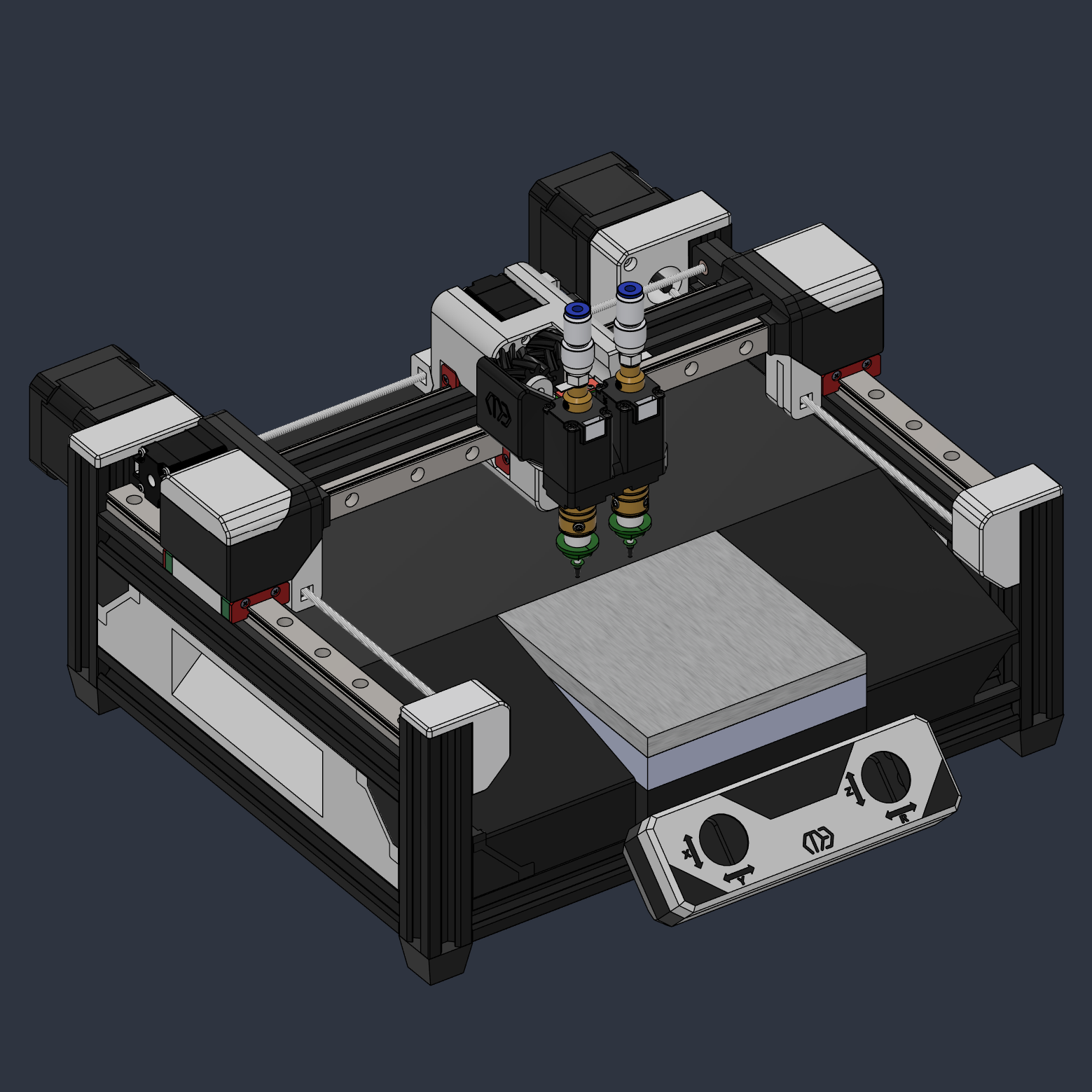

Complex Designsuch as a 3D printer or pick and place machine Complex Design example - pick and place machine $400+

Manufacturing

PCB assembly, 3D printing, CNC machining, etc. Send over your files, or provide me with a link!

Estimated Cost
Basic PCB Assembly $25 + (material costs* × 2)
Advanced PCB Assembly $80 + (material costs* × 5)
FDM 3D Printing $20 + (material costs* × 2)
Resin 3D Printing $20 + (material costs* × 3)
3DP + Hardware Assembly $40 + (material costs* × 2)
3-axis CNC Milling $50 + (material costs* × 2)
4-axis CNC Milling $100 + (material costs* × 2)

You will be asked to cover shipping charges if required.

Capabilities

A closer look at the equipment, specs, and materials behind my manufacturing services.

3D Printing

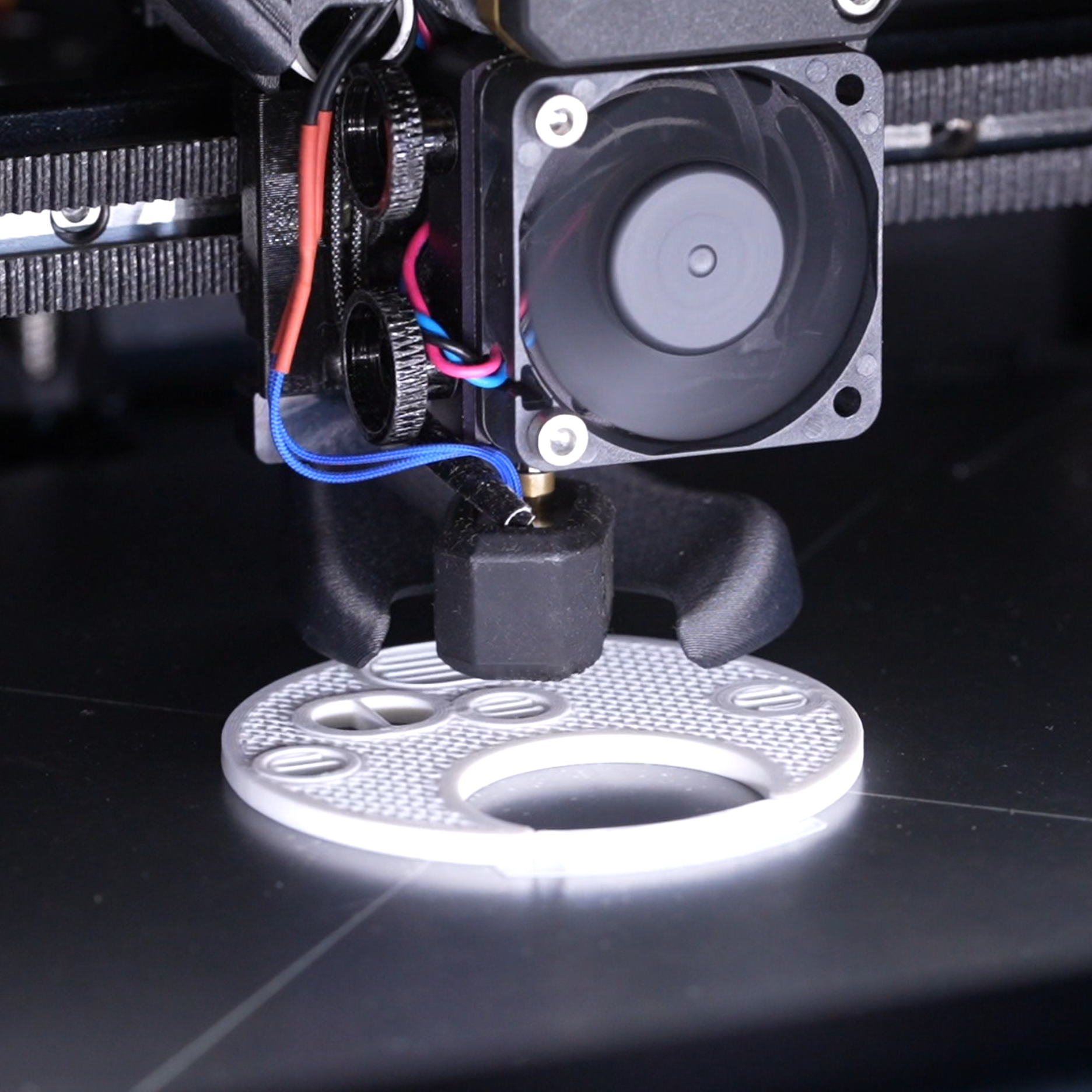

3D Printing - printer
Specifications
Max recommended batch 5000+ Small, 1000 Medium, 200 Large
Max print volume 256×256×256mm (or 250×220×270mm)
Multicolor Printing Yes
Multimaterial Printing Yes
See Available Materials

With any custom color!

PCB Assembly

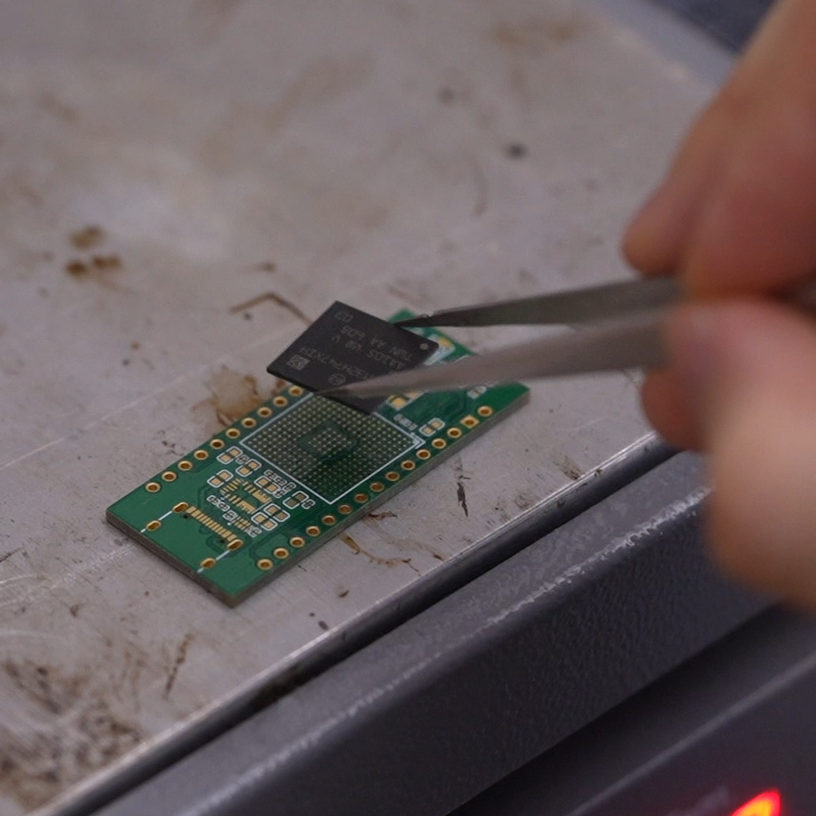

PCB Assembly - BGA

You can provide me with the components + board, or just a Bill of Materials + Gerber files.

Specifications
Max recommended batch 100+ Simple, 50 Medium, 50 Complex
Through-Hole Assembly Yes
Surface-Mount Assembly Yes
TH and SMD Combo Yes
QFP Packages Yes
QFN Packages Yes
BGA Packages Yes*

*Depends on chip.

CNC Milling

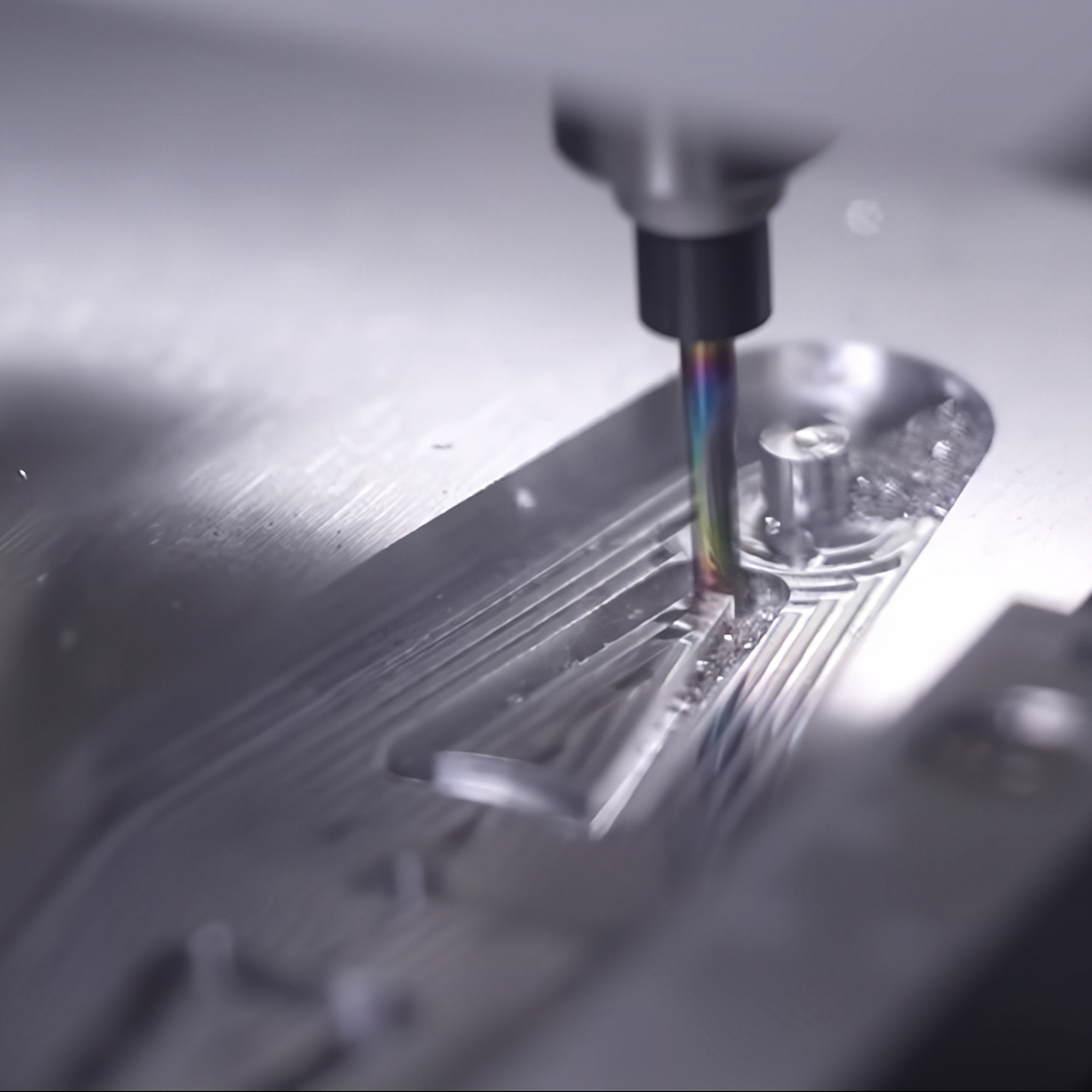

CNC Milling machine
Specifications
3-Axis Work areasmaller parts recommended 200×200×100mm
4-Axis cylindrical milling 80mm diameter, 150mm length
See Available Materials

This CNC machine also comes with a laser engraving module (5W, 455nm). I can also manufacture very basic, 2-layer PCBs for you if ultra-fast turnaround is needed.

Featured Projects All Projects

Contact Me for a Quote!

Prices may vary depending on your project! Discounts are also offered for bulk orders and service combination, e.g if you request design + manufacturing services. Furthermore, more discounts can be provided to students, schools, non-profits and similar.

*Material costs include any other charges that I may need to pay. For example, if you need CNC titanium, I cannot manufacture that myself, so I will need to order that part externally. So while a titanium part may only be $20 of material, it may be $200+ for me to get it manufactured.

Highly complex projects will be subject to an appropriate price increase.
